Graphene Core Testing Facility Instrumentation

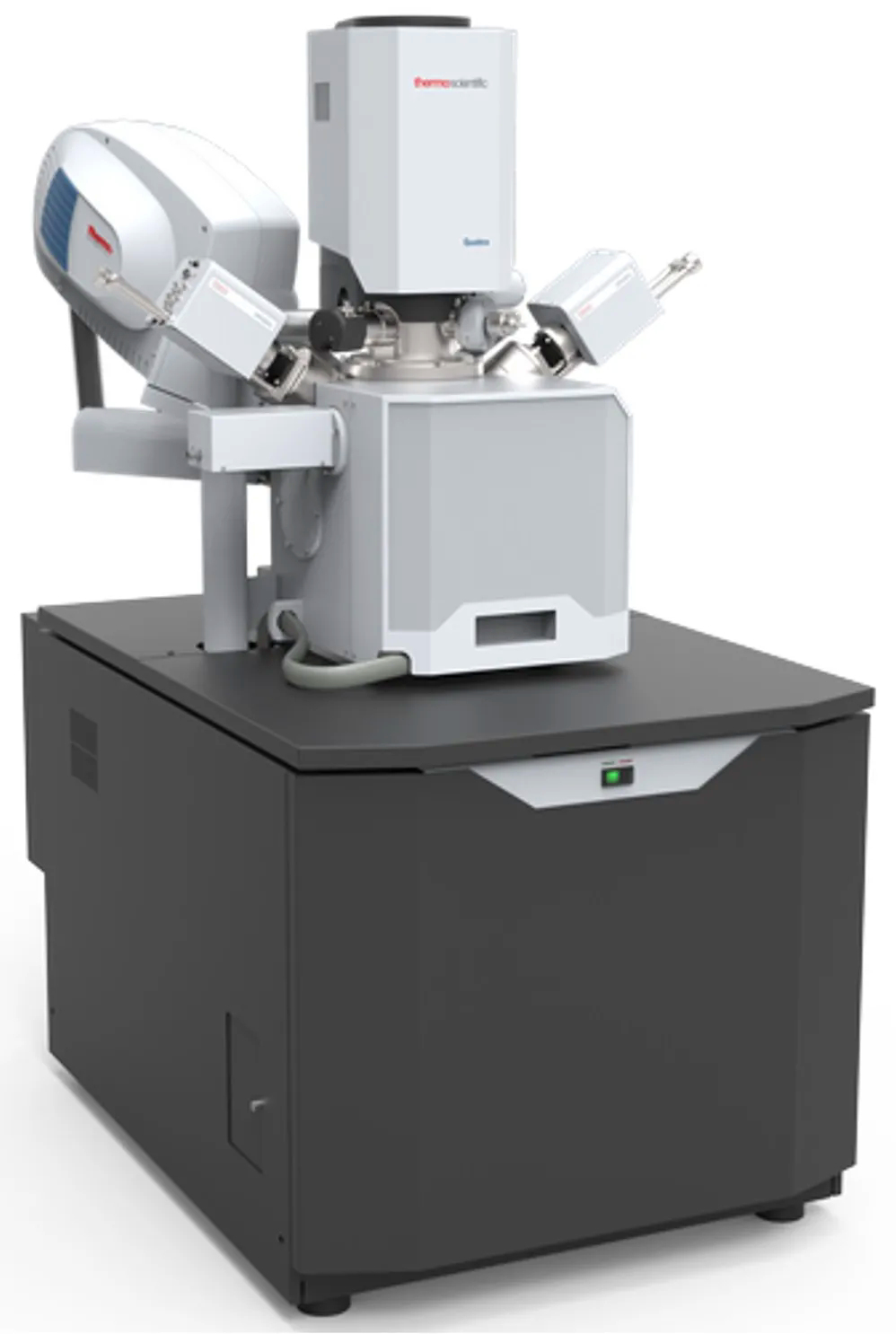

Thermo Fisher Scientific Quattro SEM

Quattro S Field-Emission Environmental Scanning Transmission Electron Microscope

The Quattro S^TM is a field emission environmental scanning electron microscope (ESEM) capable of generating and collecting all available information from any type of sample material. it is the most versatile high-resolution, low-vacuum field-emission gun (FEG) SEM with extended low-vacuum capabilities for really challenging samples and dynamic experiments. The Quattro S is the most versatile high-resolution SEM for characterization, prototyping and in situ analysis. This easy to use microscope can provide many research solutions and can be further extended with available options. The Quattro S can freely and simply be switched between three vacuum modes, enabling investigation of conductive, non-conductive and high-vacuum incompatible materials:

High-vacuum mode (6x10^-4 Pa) for imaging and microanalysis of conductive and/or conventionally prepared specimens
Low-vacuum mode (10-130 Pa) for imaging and microanalysis of non-conductive specimens without preparation
ESEM™ mode (10-4000 Pa) for high-vacuum incompatible specimens which are impossible to investigate with traditional EM methods

Features/Specifications:

Continuously adjustable voltage 200 V to 30 kV (lowest landing energy of 200 V standard and 20 V with beam deceleration mode) and a beam current of up to 200 nA
Magnification of 20x (at WD = 50 mm) to more than 1,000,000x in single quadrant view of the Quattro S user interface on the standard 24” LCD monitor
Identical field of view in high- and low-vacuum modes (21 mm at the longest working distance) and 500 µm with standard, axial, gaseous secondary electron (SE) detector
Pathfinder Alpine energy dispersive X-ray spectroscopy (EDS) System with UltraDry premium detector for analytical chamber SEM with an active area of 60 mm² and 129 eV energy resolution at Mn k-alpha
Resolution of 0.8 nm at 30 kV (STEM), 1.0 nm at 30 kV (SE) in high vacuum, 1.3 nm at 30 kV (SE) in low vacuum and ESEM mode, and 3.0 nm at 1 kV (SE)
Retractable directional back-scattered (DBS) detector
Retractable STEM 3+ detector
Solid-state detector integration kit
1000°C heating stage to record in-situ morphological sample changes in 5-mm ceramic crucibles
Cooling/heating stage control kit
Cooling stage (0-10°)C to image and analyze specimens at relative humidity conditions up to 100% at chamber pressures of 3-10 mbar and possibility of in-situ freeze-drying when the temperature range of the cooling stage is set below 0°C with a minimum of -20°C
ColorSEM for always-on, live EDS analysis
In-chamber Nav-Cam for photo-based sample navigation

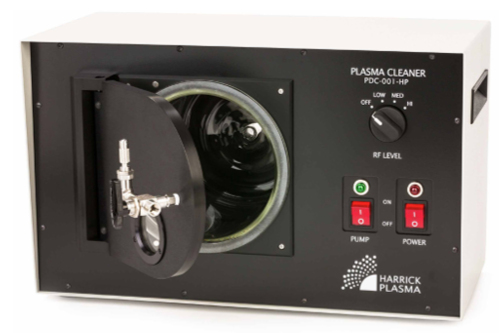

Integrated plasma cleaner for chamber cleaning and/or a mild specimen surface cleaning for the removal of hydrocarbon contaminants when operating at low kV
Multi-purpose SEM holder with labeled positions and unique stage mounting, allowing simultaneous loading of 18 standard samples (ø 12 mm), three 45˚ pre-tilted samples, and two row bars (vertical, and 52˚ pre-tilted)
Maps 3 software for SEM/SDB

Brochure: Quattro S SEM

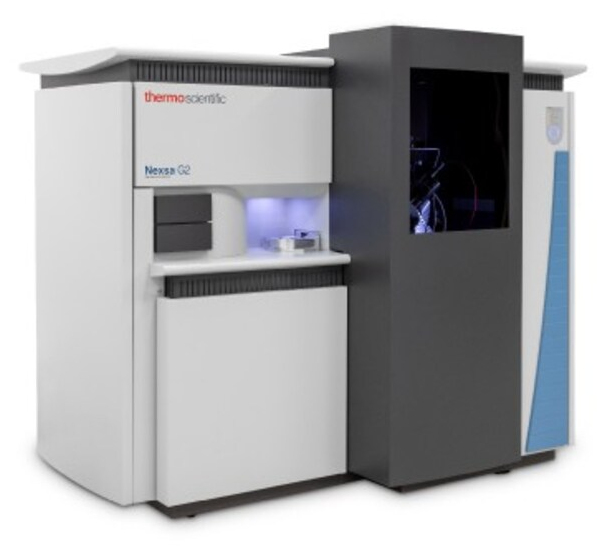

Nexsa G2 Surface Analysis (X-ray Photoelectron Spectroscopy) System

The Nexsa^TM G2 XPS System offers fully automated multi-technique analysis, for high throughput, research grade results. A high specification micro-focused Al Kα X-ray source is complemented by patented features such as co-axial, dual-beam charge compensation for insulator analysis, and reflex optical viewing to allow rapid identification and analysis of small features. The XPS SnapMap feature further enhances analysis by enabling rapid mapping of sample chemistry over small areas, to identify and detect subtle differences which may not be detectable otherwise. The Nexsa G2 system is equipped with ion scattering spectroscopy (ISS), UV photoelectron spectroscopy (UPS), reflected electron energy loss spectroscopy (REELS), and Raman spectroscopy (RS), integrated onto the same platform, which allows users to conduct true correlative analysis. This capability unlocks the potential for analysis to drive advances in microelectronics, ultra-thin films, nanotechnology development and many other applications.

Features/Specifications:

Double-focusing hemispherical electron energy analyzer with multi-element input lens, 125 mm mean radius, full 180° hemispherical analyzer, and 128 channel position sensitive detector
Microfocused 0.25 m Rowland circle monochromated x-ray source,12 keV nominal operating voltage electron source, motorized, water-cooled aluminum-coated anode with >20 operating positions, and single toroidal quartz crystal
User selectable x-ray spot sizes in 5 µm steps in the range of 10-400 µm and 120 W maximum power (400 µm X-ray spot)
XPS SnapMap rapid XPS imaging capability
4-axis specimen stage with two multi-specimen mounting plates and maximum specimen dimensions of 60x60x20 mm, one mounting plate for powder samples, one mounting plate for fiber samples, one set of three rotation holders (maximum specimen dimensions 30 mm diameter, 15 mm thick), and one mounting plate for use in combination with a rotation holder
Tilt sample holder for angle-dependent XPS in the range of +/-90° with respect to the surface normal and maximum specimen dimension of 26x5x5 mm
Vacuum transfer module to allow samples with a maximum specimen thickness of 9 mm to be transferred under vacuum into the system
Automated specimen transfer mechanism controlled from the Avantage software
Avantage v6 Software with full control of all aspects of XPS data acquisition (including spectra, SAXPS, line scans, maps, depth profiles)
Bipolar analyzer electronics (XPS+ISS)to allow both negative (electrons) and positive (ions) energy selection with the kinetic energy range of 0–1500 eV, minimum energy step size of 3 meV, and pass energy of 1-400 eV (continuously selectable)
iXR Raman spectrometer with optical integration to the analysis chamber and alignment to the XPS analysis position, 532±1 nm laser (10.0 mW laser power resolution of 0.1 mW, spot size at sample of <15 µm, 25 and 50 µm pinhole apertures, 25 and 50 µm slit apertures, spectral resolution better than 5.0 cm-1 FWHM, spectral dispersion of 2 cm^-1/CCD pixel element, upper cutoff of 3400 cm^-1, and lower cutoff of 50 cm^-1
Reflected electron energy loss spectroscopy (REELS) and charge compensation combined low-energy electron/ion flood source for charge neutralization and REELS analysis with electron beam energy of 0-10 eV for charge compensation, electron beam energy of 0-1000 eV for REELS, and electron beam emission of up to 250 µA
Monatomic and gas (helium or argon) cluster ion source (MAGCIS) with automated beam alignment and focusing, differentially pumped electron impact source with dual electrostatic lenses and floating flight tube, beam energy in monatomic mode of 500-4000 eV, beam energy in cluster mode of 2000-80000 eV, and cluster size range of 75-2000 atoms

Brochure: Nexsa G2 XPS

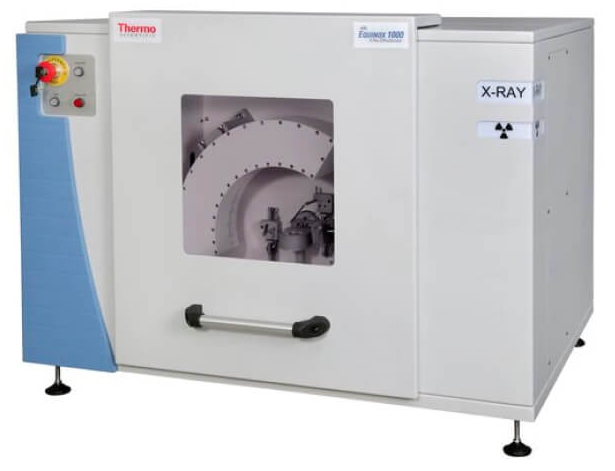

ARL EQUINOX 100 X-ray Diffractometer

ARL EQUINOX 100 is a diffractometer with fully integrated water cooling system, suitable for qualitative and quantitative analysis, phase identification, structure determination, crystallites orientation, thin film, and dynamic studies. Thanks to its detection mode, real time measurements without goniometric movement (simplified goniometer without motorization) are possible on a 110°/2θ angular range.

Features/Specifications:

Brochure: ARL EQUINOX 100 XRD

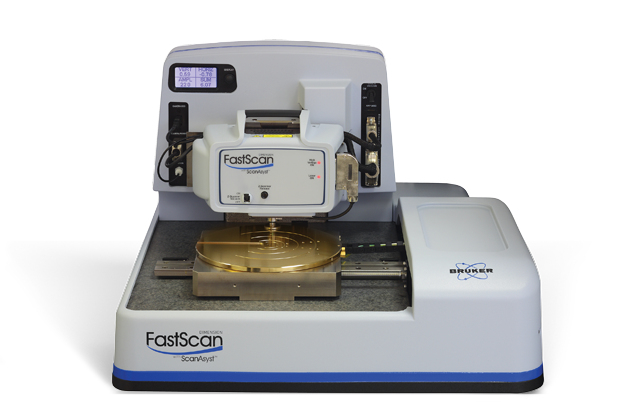

Dimension FastScan Atomic Force Microscope

Brochure: Dimension FastScan AFM

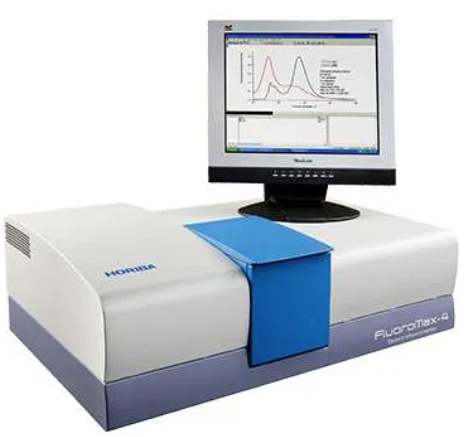

Scientific FluoroMax^TM Plus Spectrofluorometer

Fluoromax Plus all-reflective-optics research spectrofluorometer with 10,000:1 water Raman specification (FSD method)
Continuous 150W ozone-free xenon source delivering excitation light from 230nm to the NIR
DSS-IGA020L liquid nitrogen cooled InGaAs detector (800-1700nm at RT, 800-1550nm at LN2 temperature)
Mounted into the all-reflective-optic 1427C-AU housing
Rapid Peltier temperature controlled single sample holder, no circulating water is required for normal operation from 0 to +110°C
QuantaPhi-2 Integrating sphere for direct PLQY sample measurements
121 mm internal diameter Spectralon® integrating sphere with reflectivity from 250-2500nm

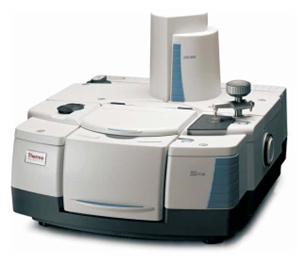

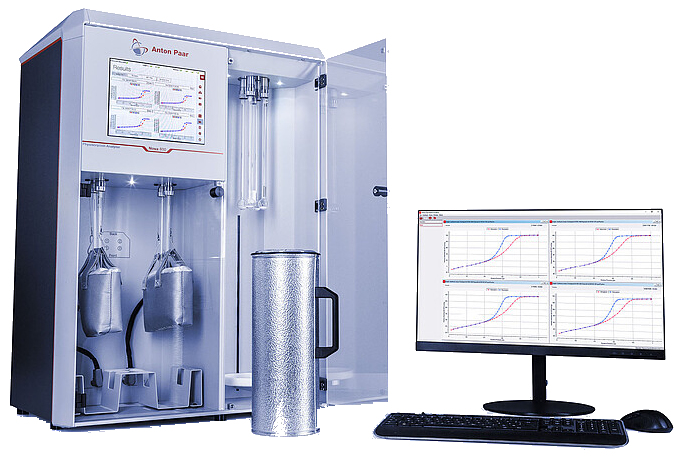

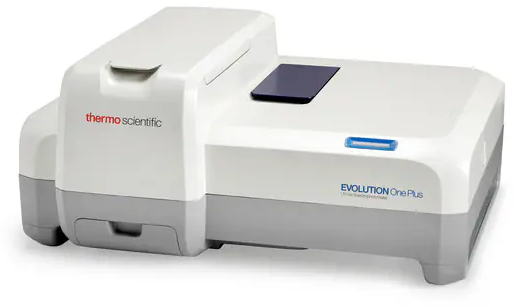

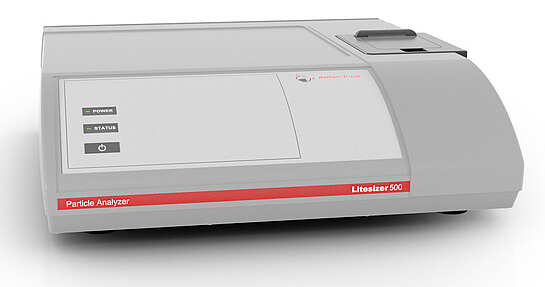

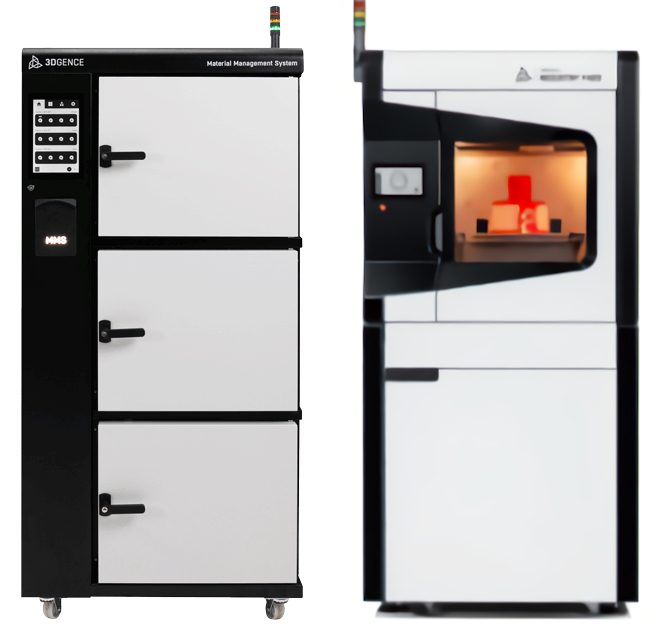

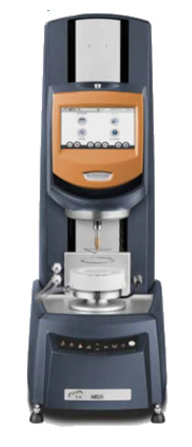

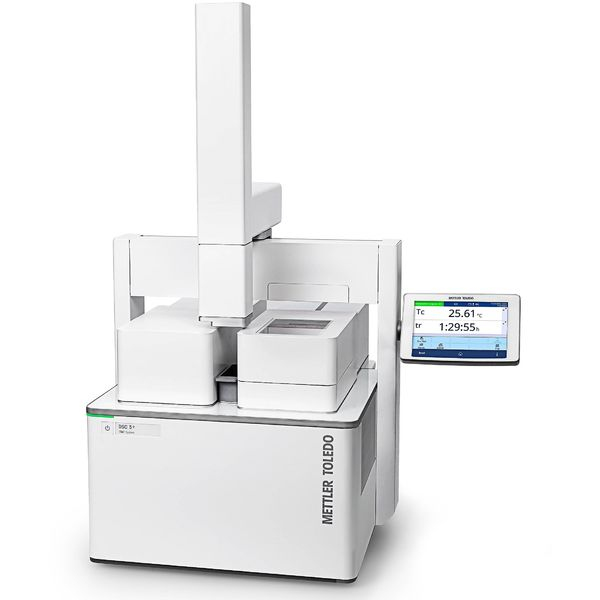

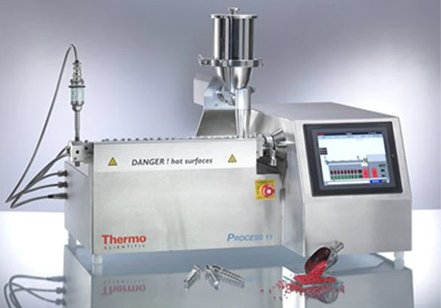

Brochure: FluoroMax Plus SFM
